We offer irregular-sized beams, available in Dual Grade with various weights and dimensions under ASTM A6/A 6M-07 standard.
| Depth | Weight | Flange | Web | |
| d | Width (B.) | Thickness (tf.) | Thickness (tw) | |
| in. | lb/ft. | in. | in. | in. |
| 3 | 5.70 | 2.330 | 0.260 | 0.170 |
| 4 | 7.70 | 2.663 | 0.293 | 0.193 |
| 5 | 10.00 | 3.004 | 0.326 | 0.214 |
| 6 | 12.50 | 3.332 | 0.359 | 0.232 |
| 8 | 17.605 | 3.543 | 0.445 | 0.295 |
Note: The weight and measures in accordance with the provisions of ASTM- A-6 / A 6M -07
THEY ARE HANDLED AT 21 FT. AND 40 FT. LONG.

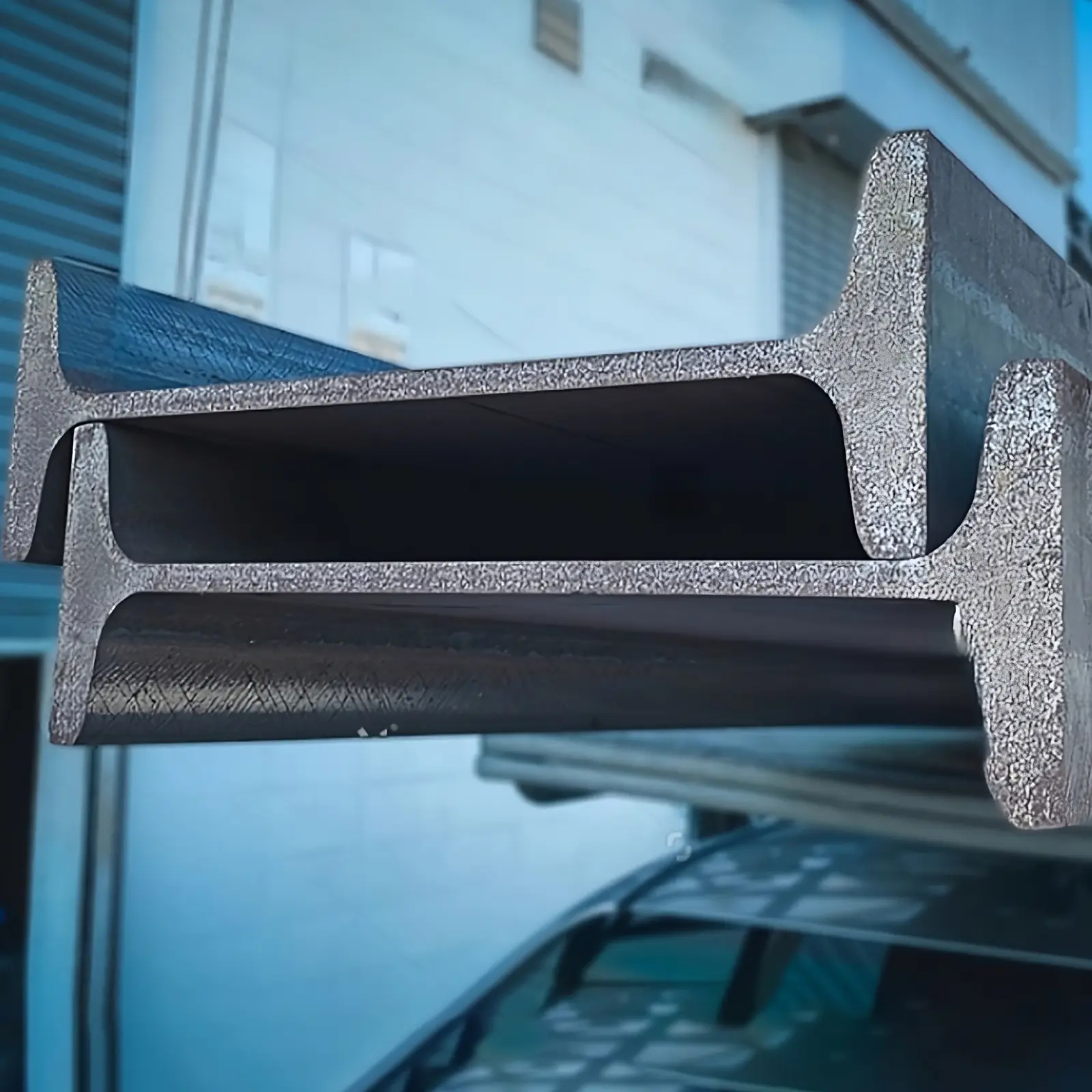

It is a structural steel profile with a cross-section characterized by having a structure in the shape of the letter I or H.
“Its ductility, which allows for easy handling, stands out, as well as its strength, which makes it versatile and capable of adapting to medium and large-scale constructions.”
“It has applications in building construction, but also in large trailers and bridges, among others.”
