Steel reinforcement for steel rebar used in semi-prefabricated concrete beams.
| Type | Dimensions | Superior Re-bar | Inferior Re-bar | Diagonal Wire | |||||
| A mm. | B mm. | C mm. | Gauge in. | Diameter mm. | Gauge in. | Diameter mm. | Gauge | Diameter mm. | |
| 10 – 36 | 100 ± 1 | 100 ± 10 | 200 ± 10 | 1/4 | 6.35 | 3/16 | 4.76 | 8 | 4.11 |
| 12 – 36 | 120 ± 1 | 100 ± 10 | 200 ± 10 | 1/4 | 6.35 | 3/16 | 4.76 | 8 | 4.11 |
| 14 – 36 | 140 ± 1 | 100 ± 10 | 200 ± 10 | 1/4 | 6.35 | 3/16 | 4.76 | 8 | 4.11 |
| 10 – 64 | 100 ± 1 | 100 ± 10 | 200 ± 10 | 1/4 | 6.35 | 1/4 | 6.35 | 8 | 4.11 |
| 12 – 64 | 120 ± 1 | 100 ± 10 | 200 ± 10 | 1/4 | 6.35 | 1/4 | 6.35 | 8 | 4.11 |
| 14 – 64 | 140 ± 1 | 100 ± 10 | 200 ± 10 | 1/4 | 6.35 | 1/4 | 6.35 | 8 | 4.11 |
All products are available upon request.
Available in lengths of 20 ft. and in packages of 120 pieces.
Can be made to specific dimensions and number of pieces according to client needs.
APPLICATIONS: USED TO MAKE SEMI-PREFABRICATED CONCRETE BEAMS
AND IN CERTAIN TYPES OF BETWEEN-FLOOR SLABS.
THIS PRODUCT CONSISTS OF THREE CORRUGATED RE-BARS IN
TRIANGULAR CONFIGURATION, ONE SUPERIOR AND TWO INFERIOR,
CONNECTED BY SMOOTHE RE-BAR WELDED IN ZIGZAG FORM EVERY 20CM.

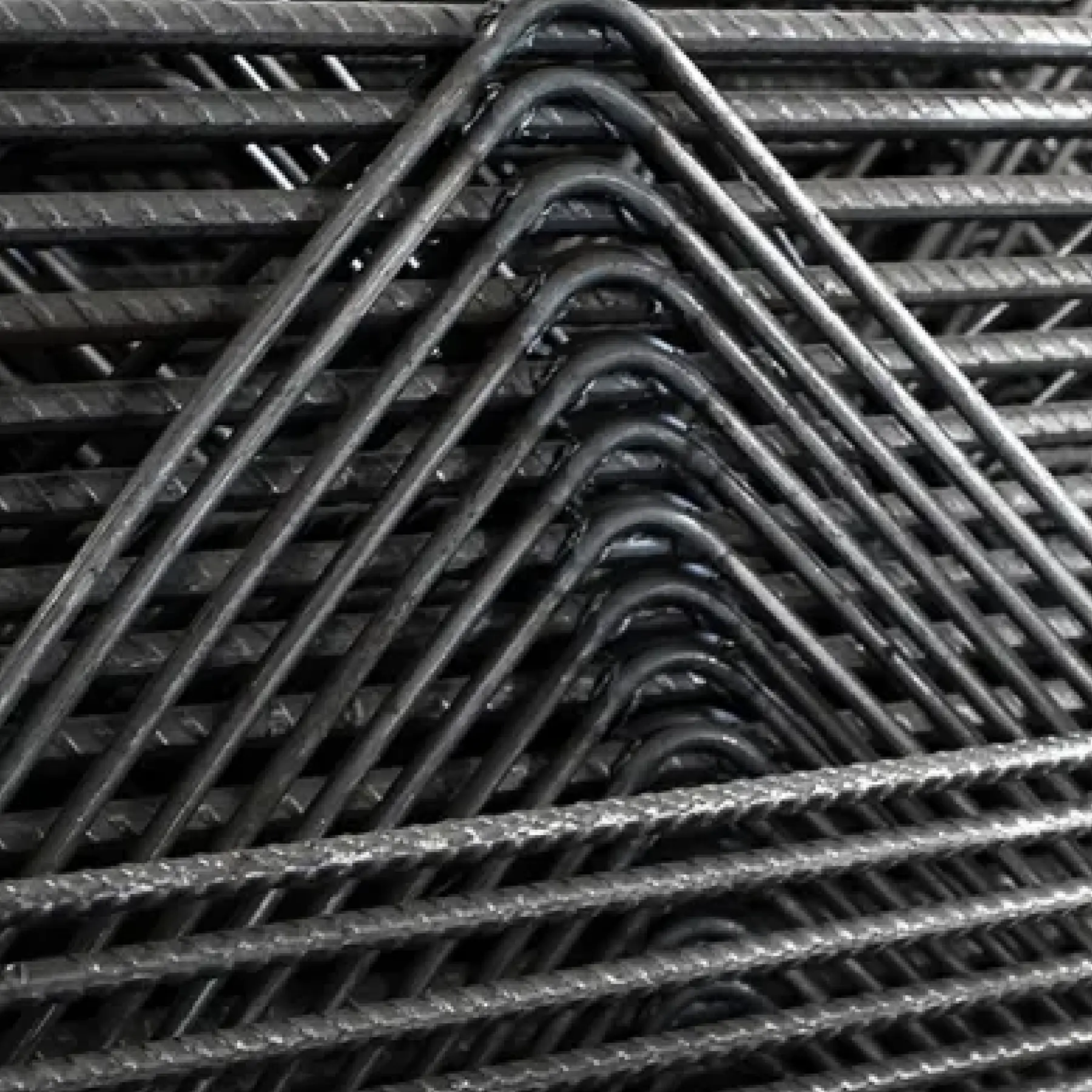

The reinforcements for beams are electrowelded products, triangular in shape with three corrugated longitudinal rods, one on top and two at the bottom, connected by smooth diagonal rods in a zig-zag pattern, welded using an electrical process.
“Lower cost of the slab, reduces the weight of the slab, saves time in execution and labor.”
“It is used to manufacture semi-prefabricated concrete beams, in the construction of slabs with beam-and-void systems.”
