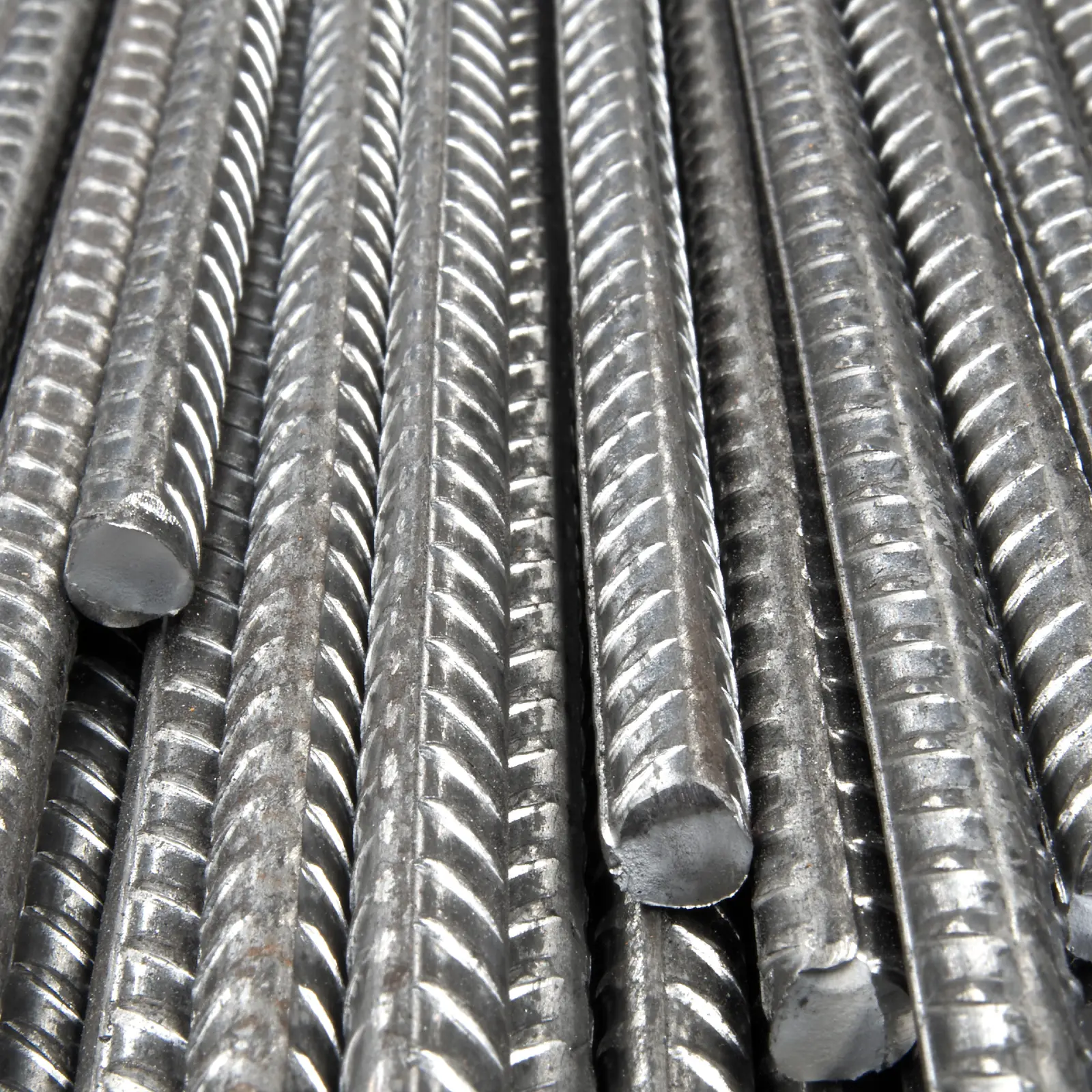

High-strength rebar grade 6000 in 6-meter lengths, with custom lengths available upon request.
| Designation Number (B) (B) | Nominal Diameter (A) (A) | Weight | Area | Rod Weight (20 ft.) | No. Pieces/Ton | ||
| in. | mm. | kg./m. | mm² | in² | kg. | ||
| 2.5 | 5/16 | 7.94 | 0.384 | 49.51 | 0.077 | 2.30 | 434 |
| 2 | 1/4 | 6.35 | 0.248 | 31.67 | 0.049 | 1.49 | 672 |
| 1.5 | 3/16 | 4.76 | 0.140 | 17.80 | 0.028 | 0.84 | 1,190 |
| 1.25 | 5/32 | 3.97 | 0.097 | 12.38 | 0.019 | 0.58 | 1,718 |
| 3 | 3/8 | 9.53 | 0.559 | 71.26 | 0.110 | 3.35 | 298 |
| Equivalents | |
| G 6000 Re-bar | Substitutes |
| 5/16" | wire rod grade 42 3/8" |
| 1/4" | wire rod grade 42 5/16" |
| 3/16" | wire rod 1/4" |
| MECHANICAL PROPERTIES | ||
| Minimum tensil strenght Mpa (kg./mm²) | Minimum tensil strenght Mpa (kg./mm²) | Minimum elengation in % |
| 687 (70) | 588 (60) | 6% en 10 d |
Available in lengths of 20 ft. and bundles of 1 ton. Lengths of up to 40 ft. by special order.
APPLICATIONS: HIGH STRENGTH RE-BAR IS USED IN THE REINFORCEMENT OF WALLS, CONCRETE POSTS,
COLUMNS AND BEAMS, AS ADDITIONAL STEEL FOR LATTICE GIRDERS, STIRRUPS, HORIZONTAL REINFORCEMENT
IN MASONRY WALLS, CEMENT PIPE, LIGHT-WEIGHT SHORT-SPAN ROOFING AND PREFABRICATED ELEMENTS.
The 6000 corrugated rebar is used for horizontal or vertical reinforcement in walls made of hollow blocks, with embedded columns (castillos) inside.
“Quality in construction material, low maintenance cost, and great durability.”
“Reinforcement of walls, concrete posts, sunk columns, lintels, beams, and rings.”
